#include <tom-tsdb/time_series.hpp>

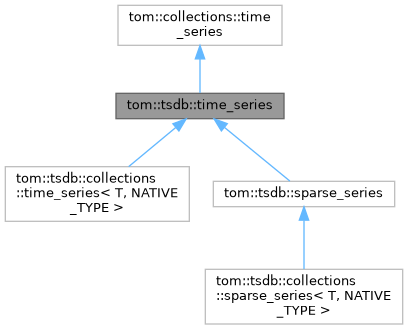

Inheritance diagram for tom::tsdb::time_series:

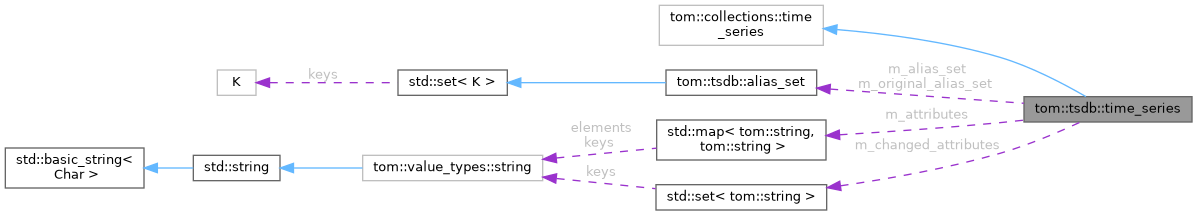

Collaboration diagram for tom::tsdb::time_series:

Public Types
typedef std::map< tom::string, tom::string >	attribute_map_t

typedef std::set< tom::string >	attribute_set_t

typedef bool(tom::tsdb::datastore::*	populate_data_func) (tom::collections::time_series &ts, const tom::string &name, tom::tsdb::native_data_type data_t, tom::calendars::calendar &cal, tom::calendars::date_int_type from, tom::calendars::date_int_type to)

Public Member Functions
bool	alias_set_touched () const

virtual bool	exists () const

size_t	get_added_aliases (alias_set &added) const

virtual aggregation_type	get_aggregation_type () const =0

virtual alias_set &	get_alias_set ()

virtual const alias_set &	get_alias_set () const

const tom::String &	get_attribute (const char *att_name, bool check_datastore=true) const

const tom::String &	get_attribute (const tom::observation &att_name, bool check_datastore=true) const

const tom::String &	get_attribute (const tom::String &att_name, bool check_datastore=true) const

virtual const attribute_set_t &	get_changed_attribute_names () const

virtual const tom::calendars::date_time &	get_create_date_time () const =0

virtual const values::data_type &	get_data_type () const =0

virtual tom::tsdb::datastore &	get_datastore () const =0

size_t	get_dropped_aliases (alias_set &dropped) const

virtual tom::calendars::date_int_type	get_first_dirty_date_int () const =0

virtual tom::calendars::date_int_type	get_last_dirty_date_int () const =0

virtual const tom::calendars::date_time &	get_modify_date_time () const =0

virtual const tom::string &	get_name () const =0

virtual const void *	get_raw_data () const =0

virtual bool	is_sparse_series () const =0

bool	operator!= (const time_series &rhs) const

bool	operator== (const time_series &rhs) const

virtual void	save (bool overwrite=false)

virtual void	set_aggregation_type (aggregation_type)=0

void	set_attribute (const char att_name, const char att_value)

void	set_attribute (const tom::observation &att_name, const tom::observation &att_value)

void	set_attribute (const tom::String &att_name, const tom::String &att_value)

Public Member Functions inherited from tom::collections::time_series
virtual time_series_iterator &	begin () const =0

virtual const void *	data () const

virtual time_series_iterator &	end () const =0

virtual tom::calendars::calendar &	get_calendar () const =0

date	get_first_date () const

virtual date_int_type	get_first_date_int () const

date	get_last_date () const

virtual date_int_type	get_last_date_int () const

virtual const observation &	get_observation (date d) const =0

virtual const observation &	get_observation (date_int_type d) const =0

virtual const observation &	operator[] (date d) const =0

virtual observation &	operator[] (date d)=0

virtual const observation &	operator[] (date_int_type d) const =0

virtual observation &	operator[] (date_int_type d)=0

virtual std::ostream &	print (std::ostream &) const =0

void	set_observation (const Date &d, bool f)

virtual void	set_observation (const Date &d, const char *f)

virtual void	set_observation (const Date &d, const observation &val)

virtual void	set_observation (const Date &d, const std::string &f)

void	set_observation (const Date &d, double f)

void	set_observation (const Date &d, float f)

void	set_observation (const Date &d, int f)

void	set_observation (const Date &d, tom::value_type f)

void	set_observation (date d, bool f)

virtual void	set_observation (date d, const char *f)

virtual void	set_observation (date d, const Date &)=0

virtual void	set_observation (date d, const observation &val)=0

virtual void	set_observation (date d, const std::string &f)

void	set_observation (date d, double f)

void	set_observation (date d, float f)

void	set_observation (date d, int f)

void	set_observation (date d, tom::value_type f)

void	set_observation (date_int_type d, bool f)

virtual void	set_observation (date_int_type d, const char *f)

virtual void	set_observation (date_int_type d, const Date &)=0

virtual void	set_observation (date_int_type d, const observation &val)=0

virtual void	set_observation (date_int_type d, const std::string &f)

void	set_observation (date_int_type d, double f)

void	set_observation (date_int_type d, float f)

void	set_observation (date_int_type d, int f)

void	set_observation (date_int_type d, tom::value_type f)

Protected Member Functions
bool	populate_alias_set () const

virtual void	set_create_date_time (const tom::calendars::date_time &)=0

virtual void	set_modify_date_time (const tom::calendars::date_time &)=0

Protected Member Functions inherited from tom::collections::time_series
date_int_type	set_first_date_int (const date_int_type d)

date_int_type	set_last_date_int (const date_int_type d)

Protected Attributes
alias_set	m_alias_set

bool	m_alias_set_touched

attribute_map_t	m_attributes

attribute_set_t	m_changed_attributes

alias_set	m_original_alias_set

Protected Attributes inherited from tom::collections::time_series
date_int_type	m_end_date_int

date_int_type	m_start_date_int

Friends
class	::tom::tsdb::datastore

Detailed Description

time_series derive from tom::collection::time_series adding the requirements needed for persistent management. These include a name, or identifier, alias_sets, data and aggregation information, user defined attributes, indication if the series is sparse, and several others.

Time_series are internally heavily templatized classes that have excellant runtime characteristics and typically amortized constant performance on basic operations like copying, and 0(N) on iterative operations like visiting all data observations.

Time_series are also garbage collected entities and may be passed through out a program without concern for memory management issues.

Finally, while there are concrete template classes, it is far easier to use the datastore::create_time_series(...) methods to create both time_series and sparse_series objects.

Constructor & Destructor Documentation

◆ ~time_series()

virtual tom::tsdb::time_series::~time_series ( )

inlinevirtual

Reimplemented from tom::collections::time_series.

Member Function Documentation

◆ alias_set_touched()

bool tom::tsdb::time_series::alias_set_touched ( ) const

Check if anyone has accessed the alias_set. This is mainly useful for persistence back-ends who need to check if the alias_set should be checked for changes.

◆ exists()

bool tom::tsdb::time_series::exists ( ) const

virtual

Does the time_series already exist in the datastore?

◆ get_added_aliases()

size_t tom::tsdb::time_series::get_added_aliases ( alias_set & added ) const

Get a count of the number of aliases added, and the added aliases added to the passed alias_set. This method is mainly useful for persistence back-ends/

◆ get_aggregation_type()

virtual aggregation_type tom::tsdb::time_series::get_aggregation_type ( ) const

pure virtual

get the aggregation_type for the time_series object

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_alias_set() [1/2]

alias_set & tom::tsdb::time_series::get_alias_set ( )

virtual

get the alias_set for the time_series. this may then be queried and/or updated and will be saved when the time_series object is itself changed.

◆ get_alias_set() [2/2]

const alias_set & tom::tsdb::time_series::get_alias_set ( ) const

virtual

get the alias_set for the time_series. this may then be queried but not updated and no changes can be saved when the time_series object is itself changed.

◆ get_attribute() [1/3]

const tom::String & tom::tsdb::time_series::get_attribute	(	const char *	att_name,
		bool	check_datastore = `true`
	)		const

inline

get a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with this method, e.g., descr = time_series::get_attribute( "description" );

◆ get_attribute() [2/3]

const tom::String & tom::tsdb::time_series::get_attribute	(	const tom::observation &	att_name,
		bool	check_datastore = `true`
	)		const

inline

get a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with this method, e.g., descr = time_series::get_attribute( "description" );

◆ get_attribute() [3/3]

const tom::String & tom::tsdb::time_series::get_attribute	(	const tom::String &	att_name,
		bool	check_datastore = `true`
	)		const

get a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with this method, e.g., descr = time_series::get_attribute( "description" );

◆ get_create_date_time()

virtual const tom::calendars::date_time & tom::tsdb::time_series::get_create_date_time ( ) const

pure virtual

get the date_time of the time_series objects creation within the datastore.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_data_type()

virtual const values::data_type & tom::tsdb::time_series::get_data_type ( ) const

pure virtual

get the data_type for the time_series object.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_datastore()

virtual tom::tsdb::datastore & tom::tsdb::time_series::get_datastore ( ) const

pure virtual

get the parent datastore for the time_series object.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_dropped_aliases()

size_t tom::tsdb::time_series::get_dropped_aliases ( alias_set & dropped ) const

Get a count of the number of aliases dropped, and the dropped aliases added to the passed alias_set. This method is mainly useful for persistence back-ends/

◆ get_first_dirty_date_int()

virtual tom::calendars::date_int_type tom::tsdb::time_series::get_first_dirty_date_int ( ) const

pure virtual

get the date_int_type for the earliest changed observation. This is mainly useful for persistence back-ends, but may be useful for you too.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_last_dirty_date_int()

virtual tom::calendars::date_int_type tom::tsdb::time_series::get_last_dirty_date_int ( ) const

pure virtual

get the date_int_type for the latest changed observation. This is mainly useful for persistence back-ends, but may be useful for you too.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_modify_date_time()

virtual const tom::calendars::date_time & tom::tsdb::time_series::get_modify_date_time ( ) const

pure virtual

get the date_time of the time_series objects last modification within the datastore.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ get_name()

virtual const tom::string & tom::tsdb::time_series::get_name ( ) const

pure virtual

get the name or identifier for a time_series.

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ is_sparse_series()

virtual bool tom::tsdb::time_series::is_sparse_series ( ) const

pure virtual

indicates if the time_series contains only sparse data, or data at near regular intervals

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ operator!=()

bool tom::tsdb::time_series::operator!= ( const time_series & rhs ) const

Check for time_series object inequality. This checks all facets of the time_series such as aliases, data, data type, etc.

◆ operator==()

bool tom::tsdb::time_series::operator== ( const time_series & rhs ) const

Check for time_series object equality. This checks all facets of the time_series such as aliases, data, data type, etc.

◆ save()

void tom::tsdb::time_series::save ( bool overwrite = false )

virtual

save the time_series object in the parent datastore. if overwrite is true, objects having the same name but different type, calendar, etc. will be overwritten by this time_series.

This method may throw a derivative of the std::runtime_error if persistence errors occur and hence should be wrapped in a try block for safety.

◆ set_aggregation_type()

virtual void tom::tsdb::time_series::set_aggregation_type ( aggregation_type )

pure virtual

set the aggregation type for the time_series object

Implemented in tom::tsdb::collections::sparse_series< T, NATIVE_TYPE >, and tom::tsdb::collections::time_series< T, NATIVE_TYPE >.

◆ set_attribute() [1/3]

void tom::tsdb::time_series::set_attribute	(	const char *	att_name,
		const char *	att_value
	)

inline

set a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with the get_attribute method, e.g., time_series::set_attribute( "description", "my favorite time-series" );

◆ set_attribute() [2/3]

void tom::tsdb::time_series::set_attribute	(	const tom::observation &	att_name,
		const tom::observation &	att_value
	)

inline

set a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with the get_attribute method, e.g., time_series::set_attribute( "description", "my favorite time-series" );

◆ set_attribute() [3/3]

void tom::tsdb::time_series::set_attribute	(	const tom::String &	att_name,
		const tom::String &	att_value
	)

set a user defined attribute for the time_series object. Users may associate any type of observation with time_series objects using a unique key for the object. For instance, users may want to store a description of a time_series, which may later be retrieved with the get_attribute method, e.g., time_series::set_attribute( "description", "my favorite time-series" );

The documentation for this class was generated from the following files:

tom-tsdb/time_series.hpp
time_series.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ~time_series()

Member Function Documentation

◆ alias_set_touched()

◆ exists()

◆ get_added_aliases()

◆ get_aggregation_type()

◆ get_alias_set() [1/2]

◆ get_alias_set() [2/2]

◆ get_attribute() [1/3]

◆ get_attribute() [2/3]

◆ get_attribute() [3/3]

◆ get_create_date_time()

◆ get_data_type()

◆ get_datastore()

◆ get_dropped_aliases()

◆ get_first_dirty_date_int()

◆ get_last_dirty_date_int()

◆ get_modify_date_time()

◆ get_name()

◆ is_sparse_series()

◆ operator!=()

◆ operator==()

◆ save()

◆ set_aggregation_type()

◆ set_attribute() [1/3]

◆ set_attribute() [2/3]

◆ set_attribute() [3/3]
